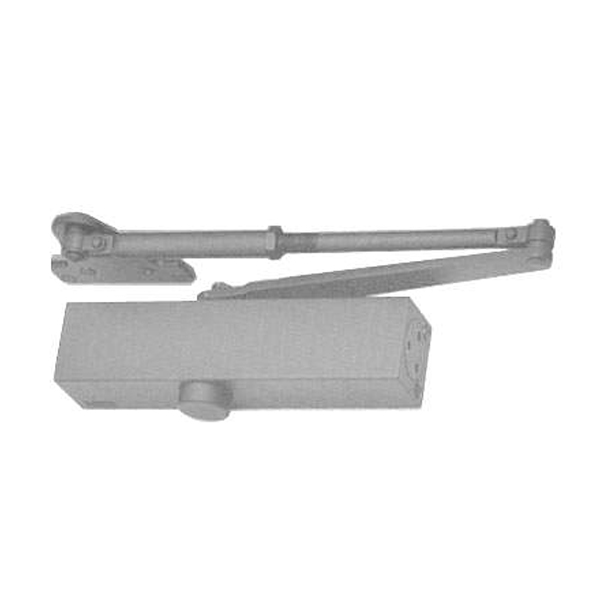

M600

  • Sizes 1 through 6 all use the same attachement dimensions
    The works on the door are the same even with different sizes

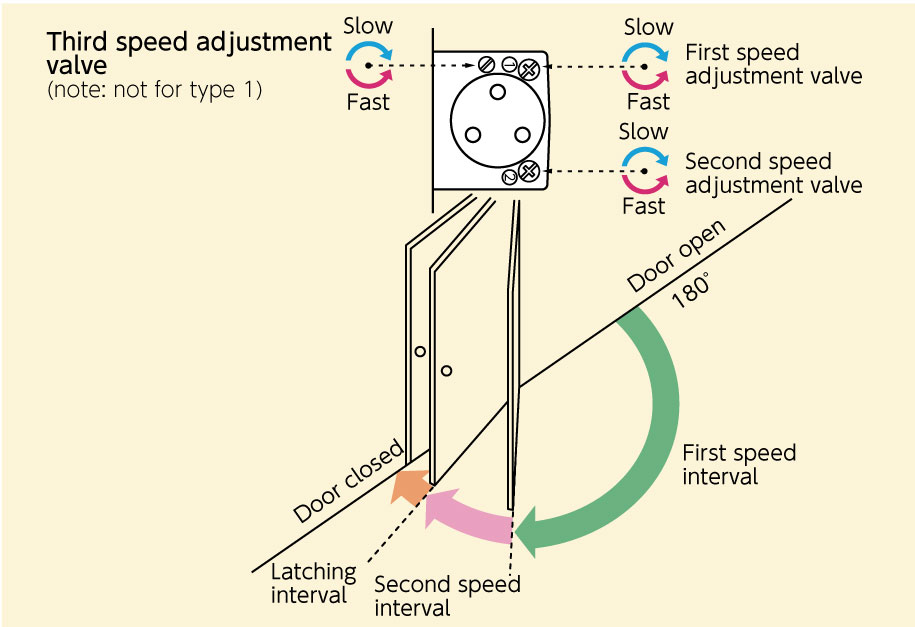

  • 3 positions speed adjustment: 1st , 2nd and 3rd (latching action)
    Closing speed can be adjusted separately in 3 positions by a screw driver.

    Note1: The latching action refers to the mechanism that speeds up
    to the door immediately before closing to ensure that the door shuts securely.
    Note2: Instead of 3rd speed adjustment, latching action angle is changeable for type 4, 5 and 6.
    Note3: Speed adjustment is different by models. Please refer to the
    detail
  • Sleek angular body and arm
    An angular body and slim, universal arm are used. The arm
    length can be adjusted.
  • Constant latching speed in any season
    Since an adjustment valve compensates for temperature
    variation, closing speed is unaffected by temperature.

  • Easy adjustment of stop angle and detailed settings
    The stop angle can be moved in approximately 10° interval
    for precision adjustment.
    Note: The stop angle may vary depending on the arm length and installation position.
  • Six colors to coordinate with your door
    The M600 Series comes in six different colors. Choose the best color to coordinate with your walls and door
  • More options available for improved performance
    Back checking:
    A back checker can be added for use in windy locations. When a back checker is used, a brake
    is activated to prevent the door from being blown open (adjustable).
  • Delayed action:
    a delayed action mechanism can be used to make the door close very slowly up to a set angle after
    it is opened past that angle (adjustable).
  • Materials and finished
    Body : Aluminum die-cast / Baked painted
    Arm : Steel / Baked painted
    Cap : ABS / Colored or Baked painted

Contact Now

Description

M600

PRODUCT INFORMATION

  • Sizes 1 through 6 all use the same attachement dimensions
    The works on the door are the same even with different sizes
  • 3 positions speed adjustment: 1st , 2nd and 3rd (latching action)
    Closing speed can be adjusted separately in 3 positions by a screw driver.

    Note1: The latching action refers to the mechanism that speeds up
    to the door immediately before closing to ensure that the door shuts securely.
    Note2: Instead of 3rd speed adjustment, latching action angle is changeable for type 4, 5 and 6.
    Note3: Speed adjustment is different by models. Please refer to the
    detail
  • Sleek angular body and arm
    An angular body and slim, universal arm are used. The arm
    length can be adjusted.
  • Constant latching speed in any season
    Since an adjustment valve compensates for temperature
    variation, closing speed is unaffected by temperature.

  • Easy adjustment of stop angle and detailed settings
    The stop angle can be moved in approximately 10° interval
    for precision adjustment.
    Note: The stop angle may vary depending on the arm length and installation position.
  • Six colors to coordinate with your door
    The M600 Series comes in six different colors. Choose the best color to coordinate with your walls and door
  • More options available for improved performance
    Back checking:
    A back checker can be added for use in windy locations. When a back checker is used, a brake
    is activated to prevent the door from being blown open (adjustable).
  • Delayed action:
    a delayed action mechanism can be used to make the door close very slowly up to a set angle after
    it is opened past that angle (adjustable).
  • Materials and finished
    Body : Aluminum die-cast / Baked painted
    Arm : Steel / Baked painted
    Cap : ABS / Colored or Baked painted

FUNCTIONS

LIST OF SPEED ADJUSTMENT

COLOR OPTION

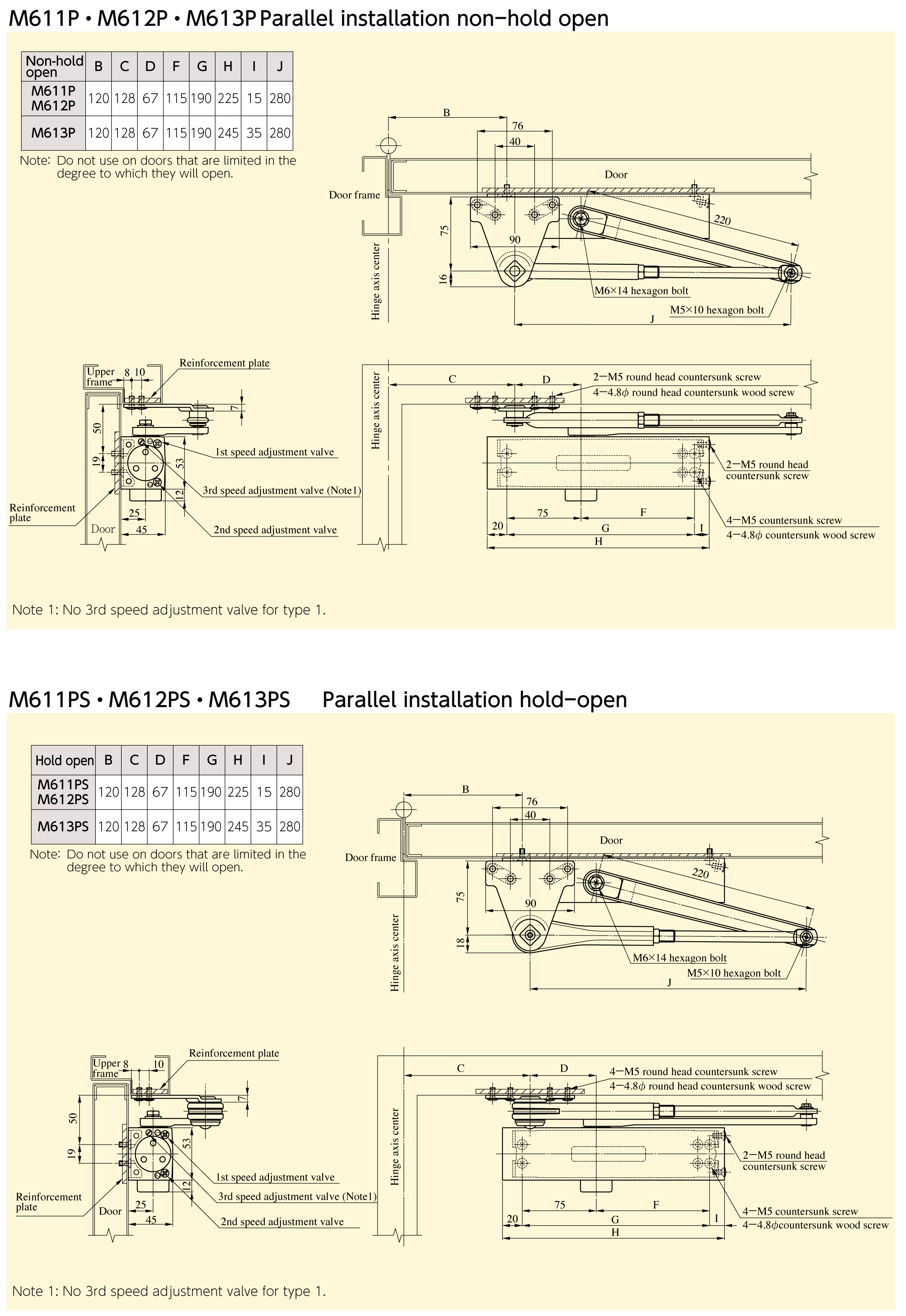

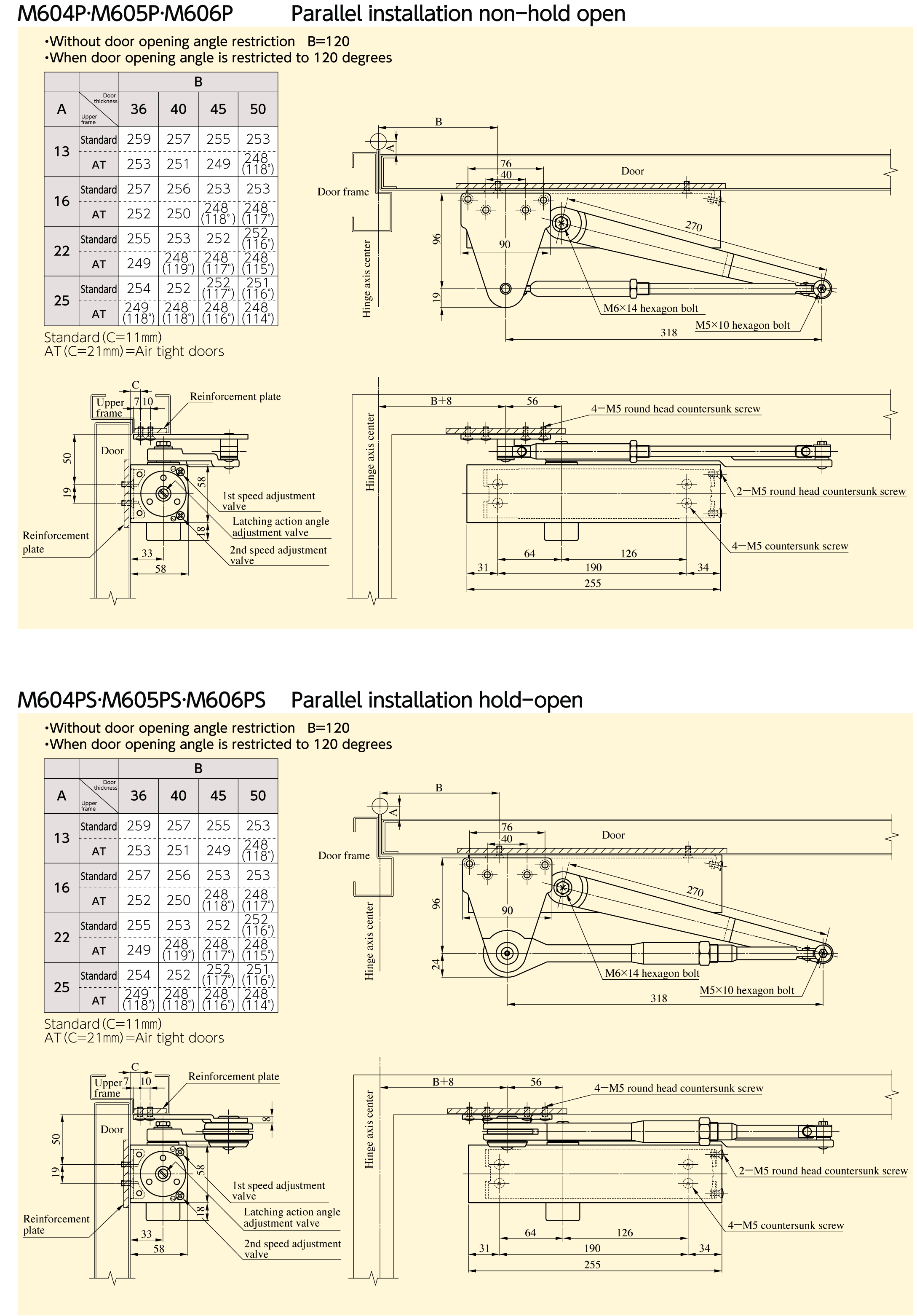

DRAWING
