Description

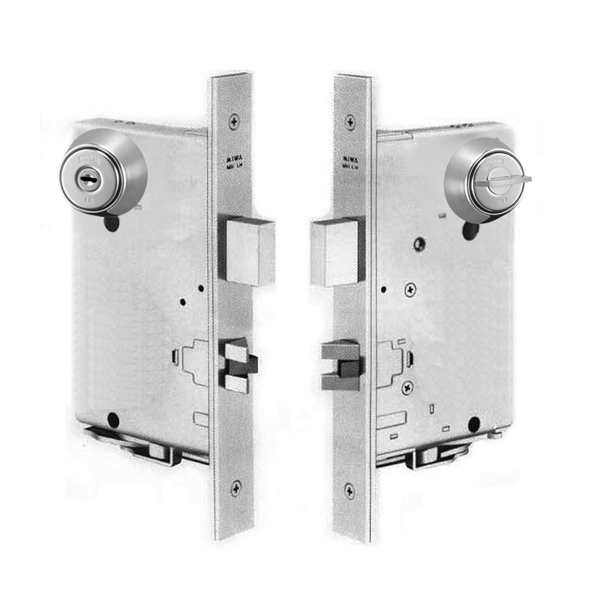

LHS Series
Outstanding strength and endurance
-
The cylinder body is made of forged steel. In addition, the
endurance test of 800,000 operations has been easily passed,
indicating outstanding endurance.

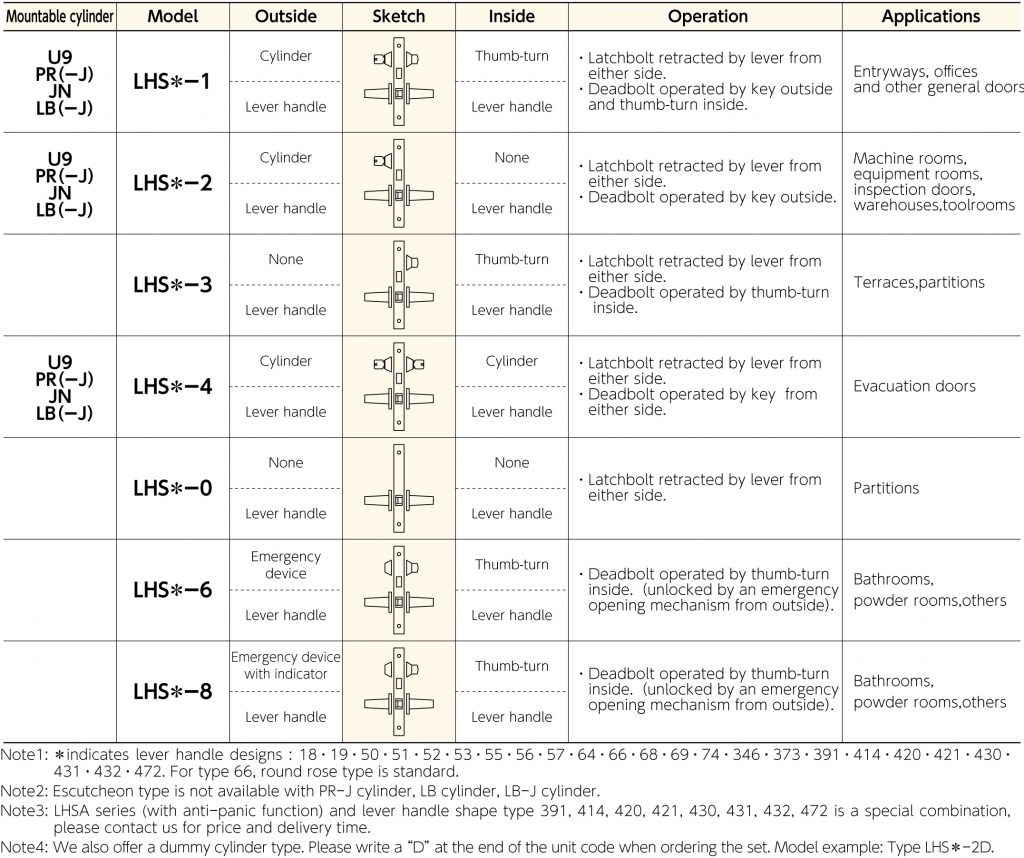

Model LHSA＊-□（with anti-panic feature)
-
With this high-quality lever handle lock, both the deadbolt and the latch bolt can be retracted simply by turning the lever on the inside, even if the deadbolt is projected（only
with 76mm backset
Model LHSA＊-□（with anti-panic feature)
-
In case of an emergency, the door can be opened without a key by simply removing the cover and turning the green knob.

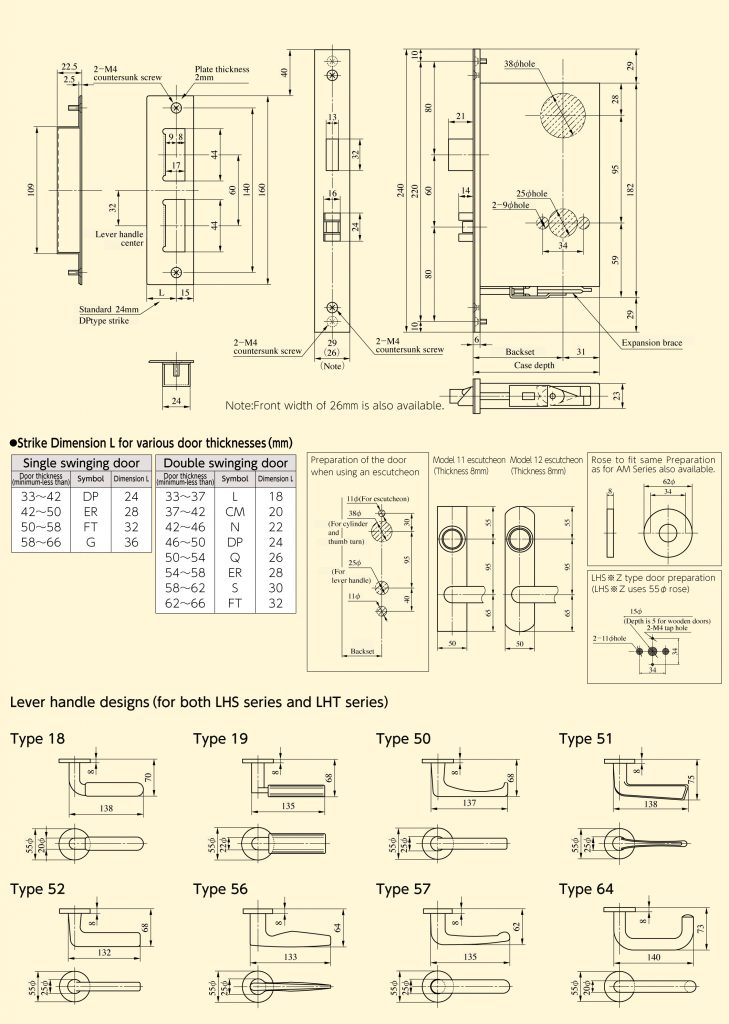

Backset (mm) : 64・76
Spacing (mm) : 95
Door thickness range (mm) : 33～42・42～50・50～58・58～66
