Description

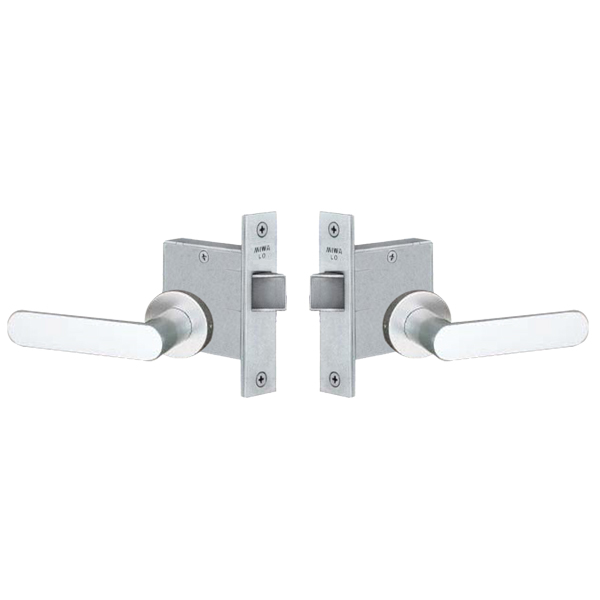

LO Series
Easy operation.
Operation of lever handle is simple,and the design assures
that there is almost no play between lever and shaft, or between shaft and case.
A wide variety of lever handle types
- A wide range of lever handles is available in aluminum alloy,
stainless steel and cast brass.
The lever handles on both sides of the door are fixed : LO＊Z.
- Escutcheons are not available.
Models 40 and 41 are not available.
The lever handle on one side of the door is fixed : LO＊-H.
- This model is used when it is desired to have a handle
installed on one side of the door only.Both left hand and
right hand models are available. This model is suitable for
steel doors only.
Front strike : 18ー8 Stainless steel（SUS304）Satin finish

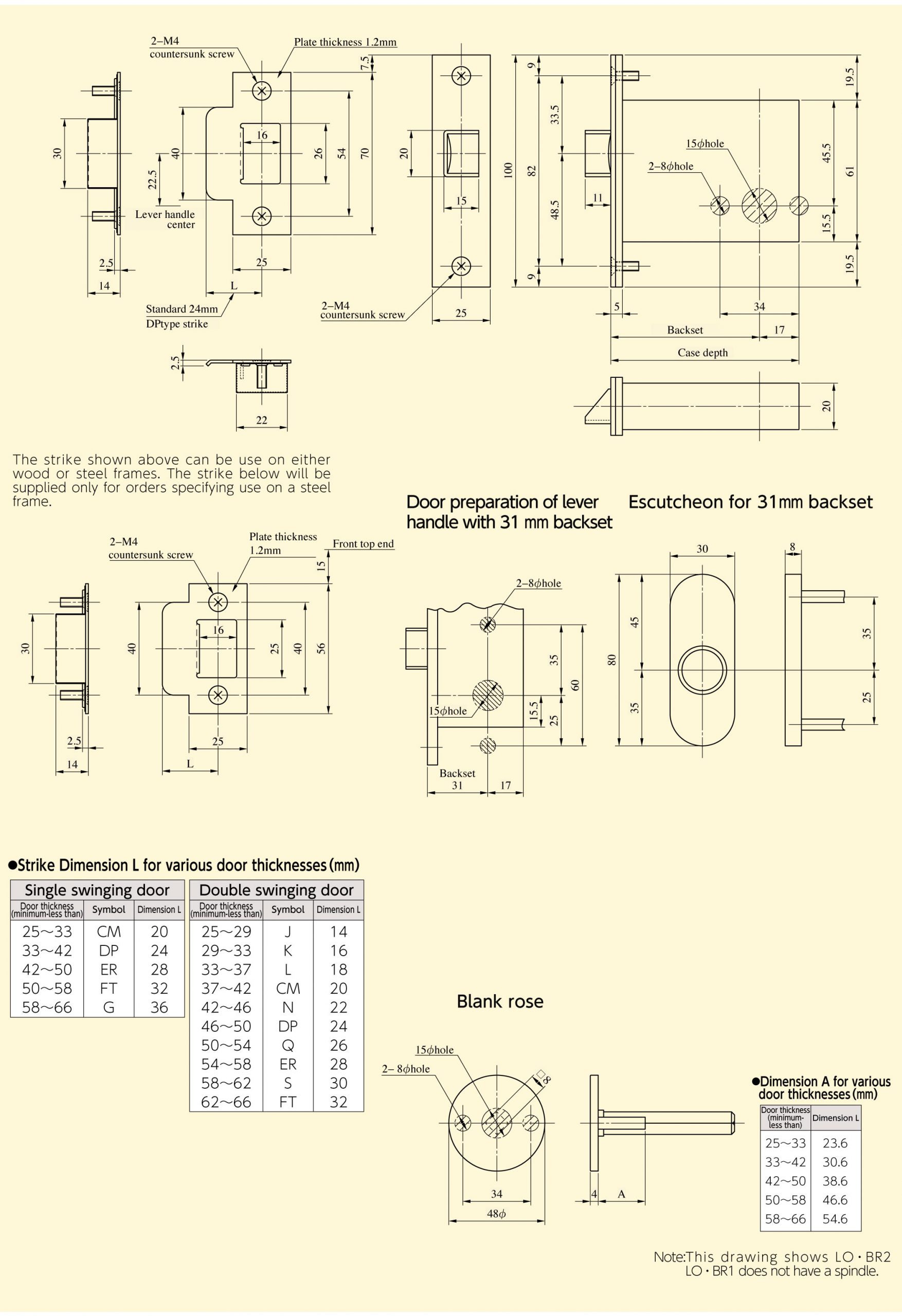

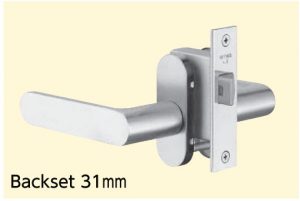

Backset (mm) : 31・38・51・64・76
Door thickness range (mm) : 25～33・33～42・42～50・50～58・58～66
