Description

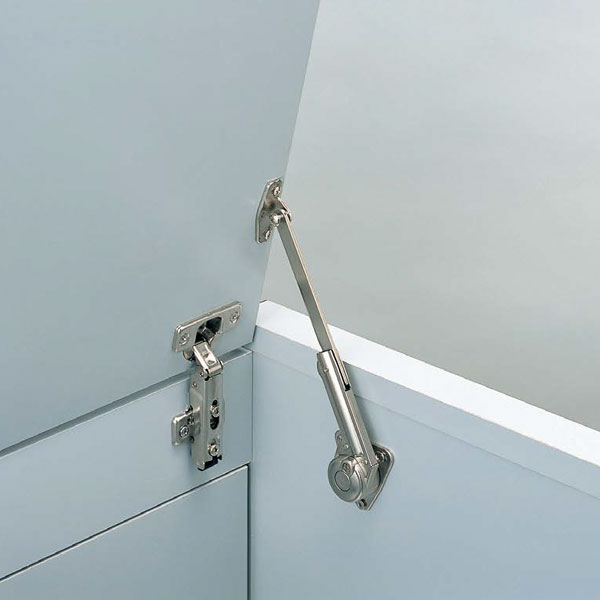

NSDX-20
Features
- For top-opening flap doors.
- Built-in damper causes flap to close gently preventing slamming.
- Built-in catch holds flap in fully opened position position.
- Can also be used with concealed, piano, or butt hinges.
- Depending on installation position, opening angle can be set to either 70˚or 105˚.
- Successfully passed for the 30,000 open/
close private cycle test. - Closing speed adjustable.
Torque
- With 1 stay
Torque = 1.96 – 6.86 N·m (20 – 70 kgf·cm) - With 2 stays, the torque will be doubled.
Torque = Door weight (kg)×9.8×Length from the axis to the centre of gravity of the door (m)
Sold Separately
- Mounting plate NSDX-SZ
- Mounting plate NSDX-CZ
- Mounting plate NSDX-AZ for 20 mm aluminium frame
- Mounting plate NSDX-GZ for glass door
- SDS-50G for glass door
INSTALLATION (OPENING ANGLE 105°)
